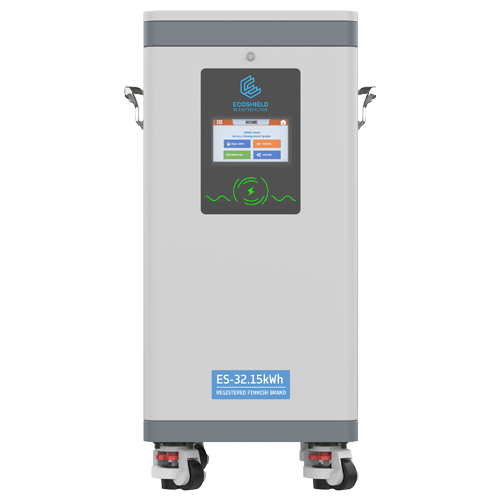

ES-32.15KWh
Model : CA-51V32H
Nominal Energy/Voltage : 32.15KWh /51.2V
Nominal Capacity : 628AH
Brand: EcoShield (Registered Finnish Brand)
Warranty: 5 Year
Features:
- More convenient touch screen operation panel.
- Stylish and minimalist design.
- Just plug and play to minimize the installation time and cost.
- Adopt lithium iron phosphate battery cell, Long life and better safety.
- Compatible with most of the available Hybrid inverters.
- Modular design gives the end customers the power of choice of capacity.
- Multiple safety certifications: MSDS,UN38.3,CE.
DataSheet_Lithium_Battery_EcoShield_ES(Li32.15KW-628AH)
Made In China By EcoShield
Description
Battery Specifications:
Battery Type: LiFePO4
Capacity: 628Ah
Rated Voltage: 51.2V
Total Energy: 32.15Kwh
Working Voltage Range: 44~58.4V
Max. Charge Current: 200A
Max.Discharge Current: 200A
Standard Charge Current: 150A
Standard Discharge Current: 150A
Max.Parallel Quantity: 15
Design Lifespan: 8000 Cycles (Test Conditions:90%DOD, 0.2C Charge & Discharge at +25°C)
Operating Temperature: Charge: 0°C~60°C , Discharge: -10°C-60°C
Operation Humidity: 5~95%
Nominal Operation Aititude: ≤3000m
IP Protection: IP20
Installation Method: Wheel Type
Communication: RS232.RS485,CAN
Certification: MSDS,UN38.3,CE
Net Weight: ≈240kg (±2%)
Production Dimension: ≈550*503*1029mm (±2%)
